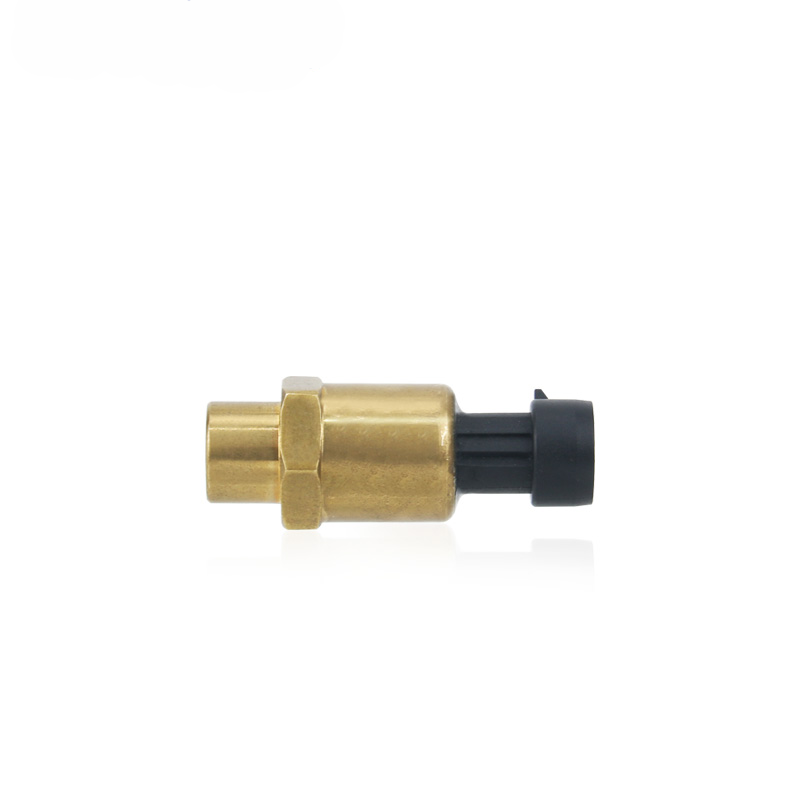

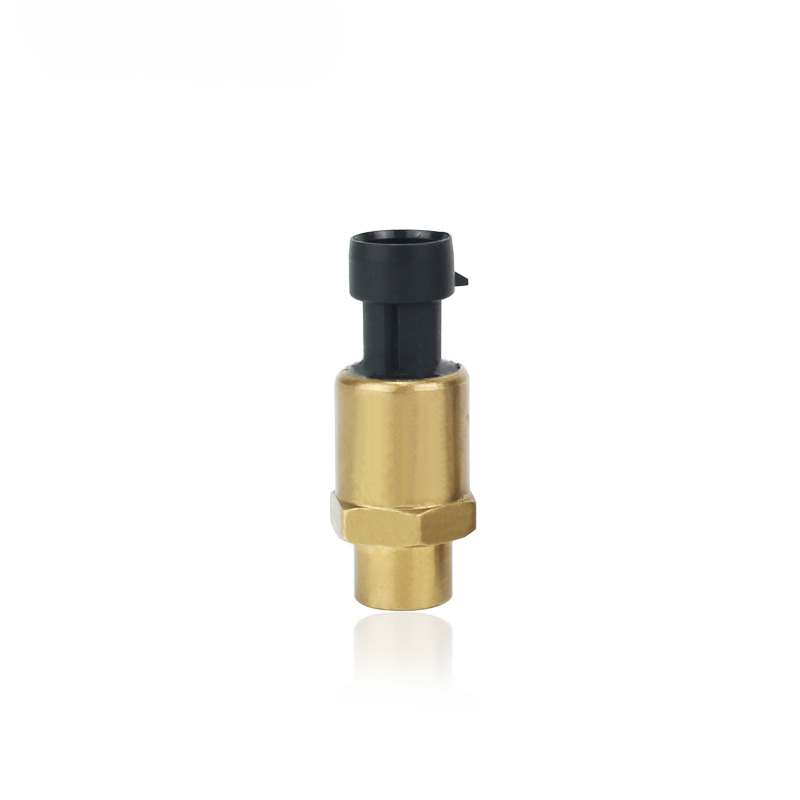

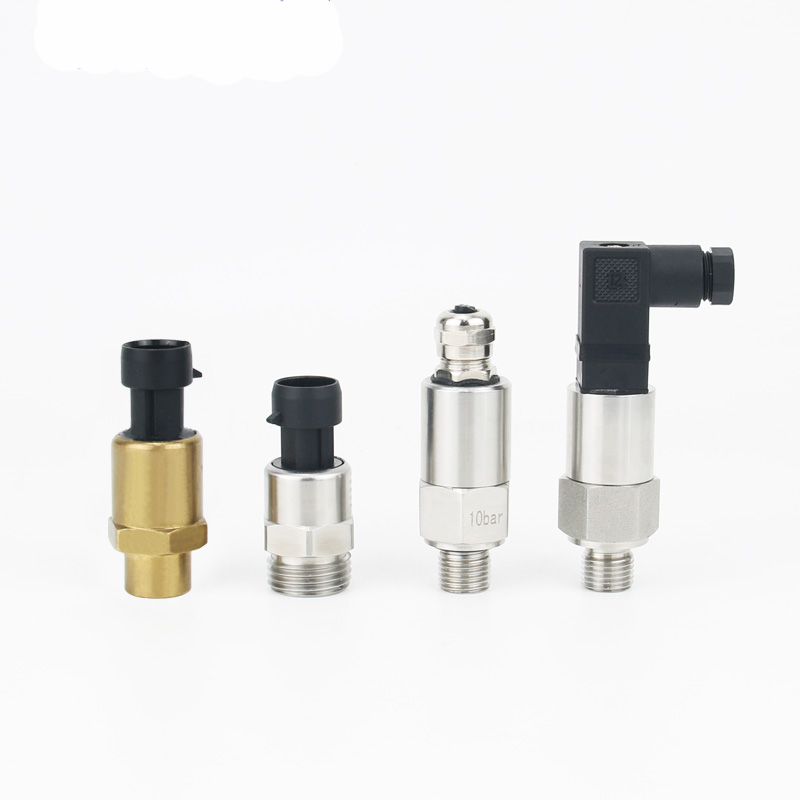

YUNYI YD41 refrigeration pressure transmitter
YD41 pressure transmitter adopts ceramic capacitor core, which is an ideal choice for refrigerantpressuremeasurement occasions. The standard 0.5-4.5V output signal, has the advantages of wide operatingtemperaturehigh precision, high waterproof level, a nd a nti- condensation water. lt is suitable for the pressuremeasurement ofmost common refrigerants, and also has a high burst pressure.
1>Pressure range:0~50Bar
2>Output:0.5~4.5VCProportional voltage output)
3>Power supply:4.75~5.25VDC
4>Pressure port:7/16-20UNF Internal thread / 7/16-20UNF External threadpair side
5>Accuracy:+ 1.5%F5(-20-80)C,+2.5%F5(-40 -120)
6>Working temperature:-40-1200℃
7>Certificate:CE, RoHS
