Key Features
-

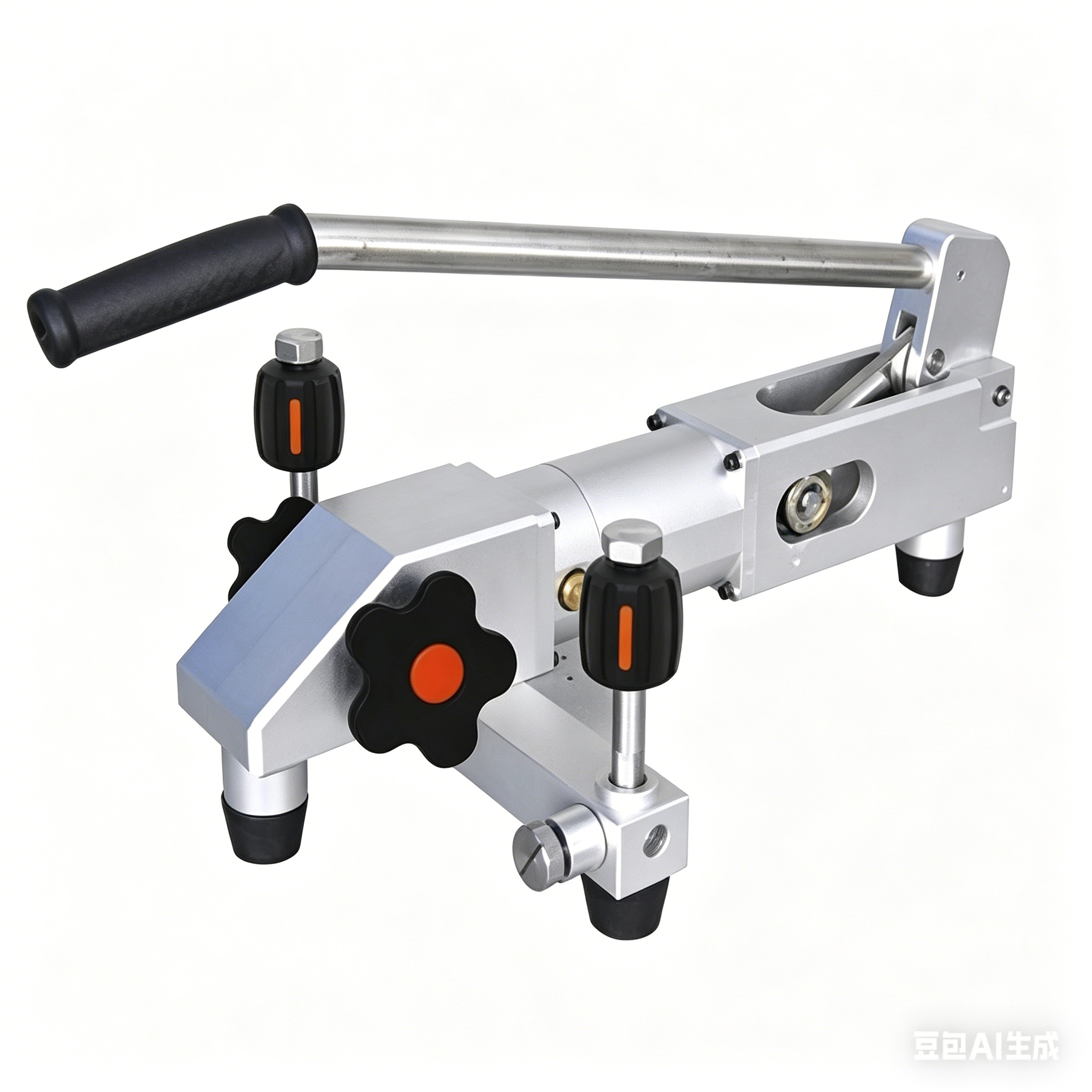

Compact & Portable – Lightweight (only 5 kg) and small footprint (360×204×100 mm), easy to carry to field calibration sites.
-
Leak-Resistant Construction – Advanced sealing technology ensures minimal leakage and long-term reliability.
-
Dual-Stage Pressure Generation – Lever for coarse pressurization and spiral micrometer for fine adjustment, enabling smooth and precise pressure control.
-
Wide Pressure Range – From -0.095 MPa (vacuum) up to 14 MPa (positive pressure), covering most industrial pressure instrument calibration needs.
-
High Stability – Stability class of 0.02%, ensuring consistent and repeatable output.
-
Fine Adjustability – Minimum adjustment resolution of 10 Pa, allowing ultra-fine tuning.
-
Working Medium – Clean, dry air (no oil or special fluids required).
-
Standard Pressure Connections – Two M20×1.5 female ports, compatible with common adapters and test hoses.
Technical Specifications
Typical Applications
This pneumatic high-pressure test pump is the ideal pressure source for on-site calibration of pressure instruments within the -0.095 MPa to 14 MPa range. When used together with the XY-2006C Intelligent Digital Pressure Calibrator or the YK-100B Digital Pressure Gauge, it forms a complete, highly efficient field calibration solution for:
-
Pressure transmitters (current/voltage output)
-
Pressure switches (setpoint verification)
-
Analog and digital pressure gauges
-
Pressure sensors and transducers
-
Other pressure instruments and indicators
Common industries:
-
Petrochemical & natural gas
-
Power generation
-
Pharmaceutical & biotechnology
-
Water treatment
-
Calibration service laboratories
-
Industrial maintenance and field service
Why Choose the XY-2006C?
-
Time-saving on-site calibration – No need to return instruments to the lab; perform quick and reliable checks directly in the field.
-
Easy operation – The lever mechanism reduces operator fatigue, and the fine adjustment knob allows precise pressure setting.
-
Vacuum to high pressure – Single device covers both negative and positive pressure, reducing the number of tools required.
-
Low maintenance – Air as the working medium eliminates contamination and simplifies cleanup.
-
Cost-effective – Affordable price with professional-grade performance and long service life.
Safety & Operation Precautions
To ensure safe operation and prolong the service life of the pressure source, please observe the following guidelines:
-
Read the user manual carefully before first use. Follow the specified sequence for opening and closing valves.
-
Operate slowly when adjusting pressure. Avoid sudden pressure spikes that could impact internal sensors, valves, or connected instruments.
-
Do not exceed the rated pressure range (max. 14 MPa). Overloading may cause permanent damage to internal components and create safety hazards.
-
Use clean, dry air as the working medium. Do not use corrosive or flammable gases.
-
Regularly inspect connections for signs of wear or leakage. Replace seals as needed.
-
After use, release all pressure before disconnecting any instrument or storing the device.
Ordering Information
Standard delivery includes:
-
Portable high-pressure gas pressure source (XY-2006C) ×1
-
M20×1.5 to quick-connect adapters (optional, depending on configuration)
-
Spare sealing rings
-
Instruction manual (English/Chinese)
Optional accessories (sold separately):
-
XY-2006C Intelligent Digital Pressure Calibrator
-
YK-100B Digital Pressure Gauge
-
High-pressure hoses with M20×1.5 fittings
-
Carrying case
