Yunyi has engaged in the research and development of pressure, liquid level, flow, and temperature sensors and transmitters, as well as their solutions. Providing OEM & ODM and custom design services

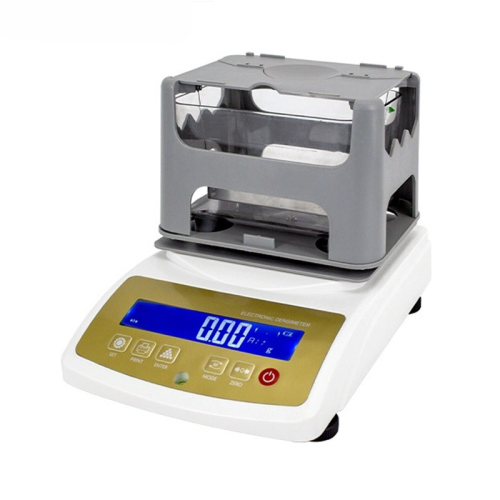

YUNYI JL-SD solid density meter

 Suitable for:
Jewelry industry, Bank, Pawn industry, Gold and Precious Metal research lab.

Principle:
According to the buoyancy method of Archimedean principle, can show gold karat, density and purity% rapidly and accuratel.

REQUEST PRICE

CONTACT US

Functions:
● Only two weighing steps, karat, density and purity of gold can be showed  rapidly and accurately.
● With the mixture proportion function, it can be used for testing density and  purity of platinum, silver and other metals.
● With the special software design, it can directly and circularly show the gold  karat (including gold-copper-silver, gold-silver, gold-
copper), gold purity%(including gold-copper-silver, gold-silver, gold-copper)
● With the function of HI and LO limit, the wide karat range from 9K to 24K and  the HI and LO value can be set freely.
● No stains and scratches left on gold after testing, it doesn’t need to use the  sulfuric acid solution to test the standard samples.
● Pure water or distilled water can be used as testing medium, it is low cost  and easily got.
● By adopting the design of big tank, it can decrease the inaccuracy caused by  supporting wire’ s buoyancy.
● Can’ t test hollow samples and the samples with precious stones; it can be  used as general balance.
● Standard size of water tank: 150 * 100 * 90 mm.

Specification:

Model JL-SD
The  maximum weight 300g
Weighing  Range 1-300g
Weighing  precision 0.01g
Density  precision 0.001g/cm3
Standard size of water  tank 150*100*90mm
